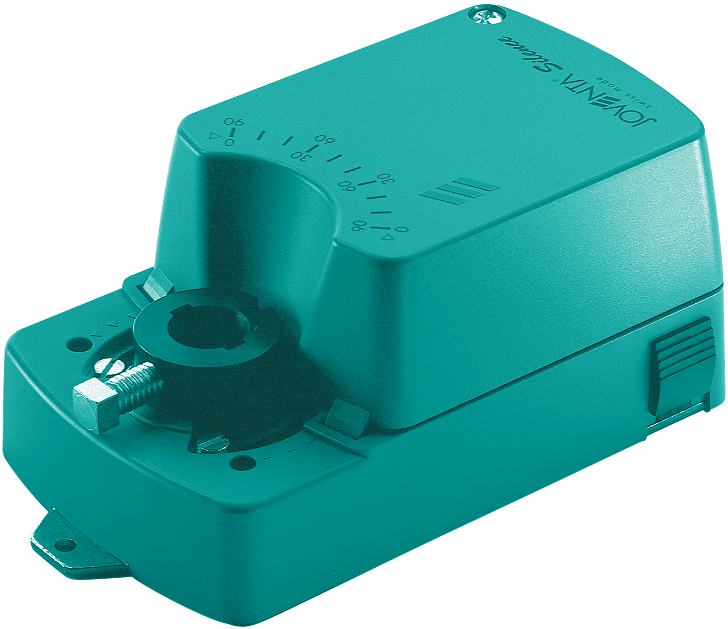

JOVENTA / FRAKTA – Actuator Modulating 4Nm Aux Switch 24V
The JOVENTA STANDARD electric damper-actuator series is designed to operate air dampers in ventilation and air conditioning systems. The compact design and universal adapter fitted with limitation of rotation angle make this JOVENTA actuator highly versatile.

KEY FEATURES:

DC 0…10 V control
Up to 5 actuators in parallel operation possible
Plug-in terminal block connection
Simple direct mounting with universal adapter for fitting to Ø6-mm to 16-mm shaft or with Z01DN adapter kit for 8,10,11 and 12 mm square shaft.
45-mm min shaft length
Selectable direction of rotation
Limitation of rotation angle
Manual release button
Automatic shut-off at end position (overload switch)
Energy saving at end positions
Actuators available with1m halogen-free cable
Customized versions available
Devices meet CE requirements
