FRAKTA/JOVENTA Germany GmbH Actuators
Click here to access the datasheet or mail us at info@alviautomation.com
Product |
Supply voltage |
Operation Type |
Torque |
Control Signal |
Position Signal |
Running Time |
DAB1.4 |
24V |
on / off |
2Nm |
3 Pt |
none |
36 sec |
DAB1.4C |
24V |
on / off |
2Nm |
3 Pt |
none |
36 sec |
DAD1.4 |
24V |
on / off |
4Nm |
3 Pt |
none |
72 sec |
DAD1.4C |
24V |
on / off |
4Nm |
3 Pt |
none |
72 sec |
DMB1.2 |
24V |
Modulating |
2Nm |
0..10V |
none |
36 sec |
DMD1.2 |
24V |
Modulating |
4Nm |
0..10V |
none |
72 sec |
DAN1.N |
24V |
on / off |
4Nm |
2/3 Pt |
none |
35 sec |
DAN1.SN |
24V |
on / off |
4Nm |
2/3 Pt |
AS |
35 sec |
DMN1.2 |
24V |
Modulating |
4Nm |
0..10V |
0..10V |
35 sec |
DAN2.N |
230V |
on / off |
4Nm |
2/3 Pt |
none |
35 sec |
DAN2.SN |
230V |
on / off |
4Nm |
2/3 Pt |
AS |
35 sec |
DAS1 |
24V |
on / off |
8Nm |
2/3 Pt |
none |
30 sec |
DAS1.S |
24V |
on / off |
8Nm |
2/3 Pt |
AS |
30 sec |
DAS1.P1 |
24V |
on / off |
8Nm |
2/3 Pt |
1 k |
30 sec |
DAS1.P2 |
24V |
on / off |
8Nm |
2/3 Pt |
140 |
30 sec |
DA1 |
24V |
on / off |
16Nm |
2/3 Pt |
none |
80 sec |
DA1.S |
24V |
on / off |
16Nm |
2/3 Pt |
AS |
80 sec |
DA1.P1 |
24V |
on / off |
16Nm |
2/3 Pt |
1k |
80 sec |
DA1.P2 |
24V |
on / off |
16Nm |
2/3 Pt |
140 |
80 sec |
DAL1 |
24V |
on / off |
24Nm |
2/3 Pt |
none |
125 sec |
DAL1.S |
24V |
on / off |
24Nm |
2/3 Pt |
AS |
125 sec |
DAL1.P1 |
24V |
on / off |
24Nm |
2/3 Pt |
1k |
125 sec |
DAL1.P2 |
24V |
on / off |
24Nm |
2/3 Pt |
140 |
125 sec |
DAG1 |
24V |
on / off |
32Nm |
2/3 Pt |
none |
140 sec |
DAG1.S |
24V |
on / off |
32Nm |
2/3 Pt |
AS |
140 sec |
DAG1.P1 |
24V |
on / off |
32Nm |
2/3 Pt |
1k |
140 sec |
DAG1.P2 |
24V |
on / off |
32Nm |
2/3 Pt |
140 |
140 sec |
DMS1.1 |
24V |
Modulating |
8Nm |
0..10V |
0..10V |
30 sec |
DMS1.1S |
24V |
Modulating |
8Nm |
0..10V |
0..10V, AS |
30 sec |
DM1.1 |
24V |
Modulating |
16Nm |
0..10V |
0..10V |
80 sec |
DM1.1S |
24V |
Modulating |
16Nm |
0..10V |
0..10V, AS |
80 sec |
DML1.1 |
24V |
Modulating |
24Nm |
0..10V |
0..10V |
125 sec |
DML1.1S |
24V |
Modulating |
24Nm |
0..10V |
0..10V, AS |
125 sec |
DMG1.1 |
24V |
Modulating |
32Nm |
0..10V |
0..10V |
140 sec |
DMG1.1S |
24V |
Modulating |
32Nm |
0..10V |
0..10V, AS |
140 sec |
DAS2 |
230V |
on / off |
8Nm |
2/3 Pt |
none |
30 sec |
DAS2.S |
230V |
on / off |
8Nm |
2/3 Pt |
AS |
30 sec |
DAS2.P1 |
230V |
on / off |
8Nm |
2/3 Pt |
1k |
30 sec |
DAS2.P2 |
230V |
on / off |
8Nm |
2/3 Pt |
140 |
30 sec |
DA2 |
230V |
on / off |
16Nm |
2/3 Pt |
none |
80 sec |
DA2.S |
230V |
on / off |
16Nm |
2/3 Pt |
AS |
80 sec |
DA2.P1 |
230V |
on / off |
16Nm |
2/3 Pt |
1k |
80 sec |
DA2.P2 |
230V |
on / off |
16Nm |
2/3 Pt |
140 |
80 sec |
DAL2 |
230V |
on / off |
24Nm |
2/3 Pt |
none |
125 sec |
DAL2.S |
230V |
on / off |
24Nm |
2/3 Pt |
AS |
125 sec |
DAL2.P1 |
230V |
on / off |
24Nm |
2/3 Pt |
1k |
125 sec |
DAL2.P2 |
230V |
on / off |
24Nm |
2/3 Pt |
140 |
125 sec |
DAG2 |
230V |
on / off |
32Nm |
2/3 Pt |
none |
140 sec |
DAG2.S |
230V |
on / off |
32Nm |
2/3 Pt |
AS |
140 sec |
DAG2.P1 |
230V |
on / off |
32Nm |
2/3 Pt |
1k |
140 sec |
DAG2.P2 |
230V |
on / off |
32Nm |
2/3 Pt |
140 |
140 sec |
DMS2.2 |
230V |
Modulating |
8Nm |
0..10V |
0..10V |
30 sec |
DMS2.2S |
230V |
Modulating |
8Nm |
0..10V |
0..10V, AS |
30 sec |
DM2.2 |
230V |
Modulating |
16Nm |
0..10V |
0..10V |
80 sec |
DM2.2S |
230V |
Modulating |
16Nm |
0..10V |
0..10V, AS |
80 sec |
DML2.2 |
230V |
Modulating |
24Nm |
0..10V |
0..10V |
125 sec |
DML2.2S |
230V |
Modulating |
24Nm |
0..10V |
0..10V, AS |
125 sec |
SA1.12 |
24V |
on / off |
8Nm |
2/3 Pt |
none |
16 sec |
SA1.12S |
24V |
on / off |
8Nm |
2/3 Pt |
AS |
16 sec |
SA1.10 |
24V |
on / off |
16Nm |
2/3 Pt |
none |
16 sec |
SA1.10S |
24V |
on / off |
16Nm |
2/3 Pt |
AS |
16 sec |
SM1.12 |
24V |
Modulating |
8Nm |
0..10V |
0..10V |
8 sec |
SM1.12S |
24V |
Modulating |
8Nm |
0..10V |
0..10V, AS |
8 sec |
SM1.10 |
24V |
Modulating |
16Nm |
0..10V |
0..10V |
16 sec |
SM1.10S |
24V |
Modulating |
16Nm |
0..10V |
0..10V, AS |
16 sec |
SA2.12 |
230V |
on / off |
8Nm |
2/3 Pt |
none |
8 sec |
SA2.12S |
230V |
on / off |
8Nm |
2/3 Pt |
AS |
8 sec |
SA2.10 |
230V |
on / off |
16Nm |
2/3 Pt |
none |
16 sec |
SA2.10S |
230V |
on / off |
16Nm |
2/3 Pt |
AS |
16 sec |
DAF1.06 |
24V |
on / off |
6Nm |
2 Pt |
none |
10..40 sec |
DAF1.06S |
24V |
on / off |
6Nm |
2 Pt |
AS |
10..40 sec |
DBF1.06 |
24V |
on / off |
6Nm |
3 Pt |
none |
10..40 sec |
DBF1.06S |
24V |
on / off |
6Nm |
3 Pt |
AS |
10..40 sec |
DAF1.08N |
24V |
on / off |
8Nm |
2 Pt |
none |
55..71 sec |

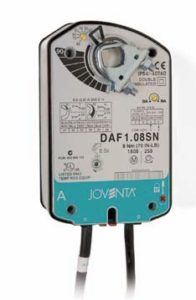

DAF1.08SN |
24V |
on / off |
8Nm |
2 Pt |
AS |
55..71 sec |
DBF1.08N |
24V |
on / off |
8Nm |
2/3 Pt |
none |
55..71 sec |
DBF1.08SN |
24V |
on / off |
8Nm |
2/3 Pt |
AS |
55..71 sec |
DAF1.10 |
24V |
on / off |
10Nm |
2 Pt |
none |
24..57 sec |
DAF1.10S |
24V |
on / off |
10Nm |
2 Pt |
AS |
24..57 sec |
DA1.F |
24V |
on / off |
16Nm |
2 Pt |
none |
90..120 sec |
DA1.FS |
24V |
on / off |
16Nm |
2 Pt |
AS |
90..120 sec |
DA1.4F |
24V |
on / off |
16Nm |
3 Pt |
none |
90..120 sec |
DA1.4FS |
24V |
on / off |
16Nm |
3 Pt |
AS |
90..120 sec |
DA1.4FP |
24V |
on / off |
16Nm |
3 Pt |
1 k |
90..120 sec |
DAF1.20 |
24V |
on / off |
20Nm |
2 Pt |
none |
24..57 sec |
DAF1.20S |
24V |
Modulating |
20Nm |
2 Pt |
AS |
24..57 sec |
DMF1.06 |
24V |
Modulating |
6Nm |
0..10V |
none |
10..40 sec |
DMF1.06S |
24V |
Modulating |
6Nm |
0..10V |
0..10 V, HS |
10..40 sec |
DMF1.08N |
24V |
Modulating |
8Nm |
0..10V |
0..10V |
55..71 sec |
DMF1.08SN |
24V |
Modulating |
8Nm |
0..10V |
0..10V, AS |
55..71 sec |
DM1.1F |
24V |
Modulating |
16Nm |
0..10V |
0..10V |
60 sec |
DM1.1FS |
24V |
Modulating |
16Nm |
0..10V |
0..10V, AS |
60 sec |
DAF2.06 |
230V |
on / off |
6Nm |
2 Pt |
none |
10..40 sec |
DAF2.06S |
230V |
on / off |
6Nm |
2 Pt |
AS |
10..40 sec |
DAF2.08N |
230V |
on / off |
8Nm |
2 Pt |
none |
55..71 sec |
DAF2.08SN |
230V |
on / off |
8Nm |
2 Pt |
AS |
55..71 sec |
DAF2.10 |
230V |
on / off |
10Nm |
2 Pt |
none |
24..57 sec |
DAF2.10S |
230V |
on / off |
10Nm |
2 Pt |
AS |
24..57 sec |
DA2.F |
230V |
on / off |
16Nm |
2 Pt |
none |
90..120 sec |
DA2.FS |
230V |
on / off |
16Nm |
2 Pt |
AS |
90..120 sec |
DAF2.20 |
230V |
on / off |
20Nm |
2 Pt |
none |
24..57 sec |
DAF2.20S |
230V |
on / off |
20Nm |
2 Pt |
AS |
24..57 sec |
MA1 |
24V |
on / off |
16Nm |
2/3 Pt |
none |
120 sec |
MA1.S |
24V |
on / off |
16Nm |
2/3 Pt |
AS |
120 sec |
MM1.1 |
24V |
Modulating |
16Nm |
0..10V |
0..10V |
120 sec |
MM1.1S |
24V |
Modulating |
16Nm |
0..10V |
0..10V, AS |
120 sec |
MA2 |
230V |
on / off |
16Nm |
2/3 Pt |
none |
120 sec |
MA2.S |
230V |
on / off |
16Nm |
2/3 Pt |
AS |
120 sec |
